Pallet racking systems

features
With a perfectly adapted racking system, why enlarge? If you have space in height or outside, this is the best solution! A shelving system allows you to maximize your space by using the height of your warehouse. All our racks are manufactured in Canada and are compatible with Redirack. Whatever the shelving, new or used, we can advise you.


No matter the type of racking, new or used, we can help you with:

  • Simple depth

  • Double depth

  • "Drive-In/Thru”

  • Pushback

  • "Pallet flow" or "Carton flow"



 All our racking systems are:

  • Made of first quality steel

  • Powder coated

  • Made in Canada

  • Certified CWB and ISO 9001



Your current racking systems worries you ? We offer complete inspection service!

Downloads

Pallet Racking Safety Guide (french)

Request For Quote

An error occured. Please verify all the fields.

Please validate that you are not a bot.

Your submission has successfully been sent to MSK!

Témoignage



« The experts at MSK Canada took the time to analyze our situation; their solution lead to an increase of 40% of the storage capacity of our existing warehouses, avoiding a costly expansion project!»

— Bell Helicopter, manufacturing - aeronautics




Components

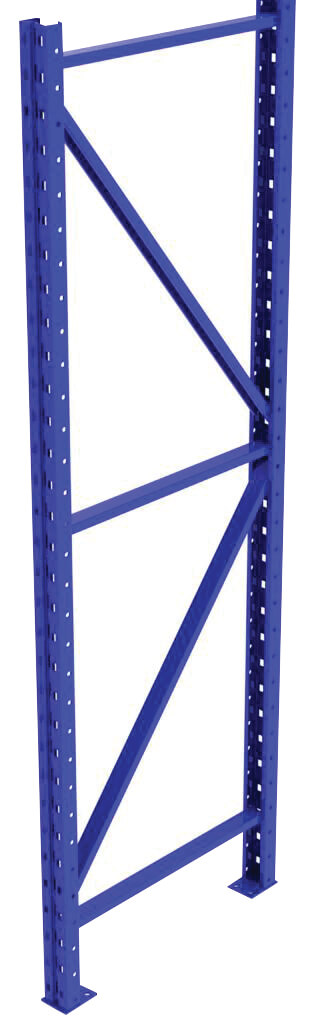

 A  Welded Frames

Welded frames are the most common in North America. All frames are painted using a powder coat paint process with polyester (THC free). Three types of post are proposed: 3.25x2’’, 3.25x3’’ and 4x3’’. Each is available in a range of steel thickness (gage) depending on weight requirements

Product code
dimensions
03-FWA-24X096-MB
24'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-36X096-MB
36'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X096-MB
42'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X120-MB
42'' x 120'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X144-MB
42'' x 144'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X192-MB
42'' x 192'' Welded frame (3.25'' X 2''- 14 ga) , Mercury Blue
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-24X096-OR
24'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-36X096-OR
36'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X096-OR
42'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X120-OR
42'' x 120'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X144-OR
42'' x 144'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X192-OR
42'' x 192'' Welded frame (3.25'' X 2''- 14 ga) , Orange
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-24X096-GR
24'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-36X096-GR
36'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X096-GR
42'' x 96'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X120-GR
42'' x 120'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X144-GR
42'' x 144'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FWA-42X192-GR
42'' x 192'' Welded frame (3.25'' X 2''- 14 ga) , Pale Grey
---
---
---
---
---
---
---
---
---
---
---
---
---

 B  BOX BEAMS



Box beam handle mainly wire mesh decks, cup style safety bars and fork entry bars. Beams are available in different sizes depending on load requirements (see capacity chart). Cresswell’s box beams are made with 2 inserted channels making them more resistant to collisions and rust, and providing more capacity than the competition.



product code *
dimensions
03-BB-15X20X060-RA-__
Beam 1.5'' X 2'' x 60'
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X20X072-RA-__
Beam 1.5'' X 2'' x 72'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X20X084-RA-__
Beam 1.5'' X 2'' x 84'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X30X060-RA-__
Beam 1.5'' X 3'' x 60'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X30X072-RA-__
Beam 1.5'' X 3'' x 72'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X30X084-RA-__
Beam 1.5'' X 3'' x 84'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X084-RA-__
Beam 1.5'' X 4'' x 84'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X090-RA-__
Beam 1.5'' X 4'' x 90'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X096-RA-__
Beam 1.5'' X 4'' x 96'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X102-RA-__
Beam 1.5'' X 4'' x 102'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X108-RA-__
Beam 1.5'' X 4'' x 108'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X40X120-RA-__
Beam 1.5'' X 4'' x 120'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X084-RA-__
Beam 1.5'' X 5'' x 84'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X090-RA-__
Beam 1.5'' X 5'' x 90'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X096-RA-__
Beam 1.5'' X 5'' x 96'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X102-RA-__
Beam 1.5'' X 5'' x 102'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X108-RA-__
Beam 1.5'' X 5'' x 108'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-15X50X120-RA-__
Beam 1.5'' X 5'' x 120'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X084-RA-__
Beam 1.5'' X 6'' x 84'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X090-RA-__
Beam 1.5'' X 6'' x 90'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X096-RA-__
Beam 1.5'' X 6'' x 96'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X102-RA-__
Beam 1.5'' X 6'' x 102'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X108-RA-__
Beam 1.5'' X 6'' x 108'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X120-RA-__
Beam 1.5'' X 6'' x 120'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---
03-BB-20X60X126-RA-__
Beam 1.5'' X 6'' x 126'' (box, ff)
---
---
---
---
---
---
---
---
---
---
---
---
---

box beams - c channel

product code*
dimensions
03-CB-15X25X096-RA-__
1.5'' X 2.5'' X 96'' beam (c channel, ff) rr connector
---
---
---
---
---
---
---
---
---
---
---
---
---

box beams - baby rack

product code *
dimensions
03-FLA-15X096-__
15'' x 96'' (baby rack- 14 ga) welded frame
---
---
---
---
---
---
---
---
---
---
---
---
---
03-CB-10X30X072-LA-__
1.5'' x 2.5' x 72'' (c channel, ff) baby rack
---
---
---
---
---
---
---
---
---
---
---
---
---
03-CB-10X30X096-LA-__
1.5'' x 2.5' x 96'' (c channel, ff) baby rack
---
---
---
---
---
---
---
---
---
---
---
---
---
---
1.5'' x 2.5' x 15'' (c channel, ff) safety bar for c channel
---
---
---
---
---
---
---
---
---
---
---
---
---
ALSO AVAILABLE

STEP BEAMS

Step beam handle mainly Cresswell’s clip-on safety bars, drop-in panels, board and mesh decks. Beams are available in different sizes depending on load requirements (see capacity chart). Cresswell’s step beams are made of 2 inserted channels making them more resistant to collisions and rust, and providing more capacity than the competition.


 C  SAFETY BARS



MANUFACTURING

  • Tested to respect standards
  • 12 gauge galvanized or structural steel
  • Optional powder coating
  • Single piece construction



ADVANTAGES

  • Safe
  • Secure heavy loads
  • Low cost
  • Easy to install
  • Compatible with every storage system

product code
dimensions
03-FSB36-GALV
Universal 36'' safety bar (flush finish), galvanized
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FSB42-GALV
Universal 42'' safety bar (flush finish), galvanized
---
---
---
---
---
---
---
---
---
---
---
---
---
03-FSB48-GALV
Universal 48'' safety bar (flush finish), galvanized
---
---
---
---
---
---
---
---
---
---
---
---
---
WIRE DECKING


On order in all dimensions and in every style. Flexible and strong. For all usage, from industrial, warehouses or office storage. Reversed mesh available for all styles.

Capacity:
  • Mesh shelf with 3 safety bars: 2 500 lb
  • High-capacity mesh also available

styles offered

description
Waterfall
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Box beam
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Heavy box
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Flat box beam
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Instep (with bend)
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Instep (old style)
---
---
---
---
---
---
---
---
---
---
---
---
---
---

wire decking - available dimensions

product code
dimensions
07-WD2446WF-GALV
24'' x 46'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3046WF-GALV
30'' x 46'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3646WF-GALV
36'' x 46'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4246WF-GALV
42'' x 46'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4846WF-GALV
24'' x 48'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3048WF-GALV
30'' x 48'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3648WF-GALV
36'' x 48'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4248WF-GALV
42'' x 48'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4848WF-GALV
48'' x 48'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD2452WF-GALV
24'' x 52'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3052WF-GALV
30'' x 52'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3652WF-GALV
36'' x 52'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4252WF-GALV
42'' x 52'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4852WF-GALV
48'' x 52'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD2455WF-GALV
24'' x 55'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3055WF-GALV
30'' x 55'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD3655WF-GALV
36'' x 55'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4255WF-GALV
42'' x 55'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---
07-WD4855WF-GALV
48'' x 55'' Wire Decking, Waterfall, Galvanized steel
---
---
---
---
---
---
---
---
---
---
---
---
---

row spacers

product code
dimensions
description
03-RS-A-0800-MB
For 3.25'' frames, Mercury blue
They are the most common row spacers. They can be used with any Redirack compatible 3.25’’wide post. Must be fixed with(4) 3/8’’-16 grade 5 bolts.
---
---
---
---
---
---
---
---
---
---
---
---
03-RS-A-0800-OR
For 3.25'' frame, Orange
These row spacers are more sturdy, and are intended mainly for 4.0’’ face post applications. Also fixed with (4) 3/8’’-16 grade 5 bolts.
---
---
---
---
---
---
---
---
---
---
---
---
03-RS-A-0800-GR
For 3.25'' frame, Pale Grey
Row spacers made of post material are generally used as rub rail. They can also be used to reinforce the racking against collisions.
---
---
---
---
---
---
---
---
---
---
---
---

* Complete de product code with the desired color :

MB — Mercury Blue
OR — Orange
GR — Pale Grey

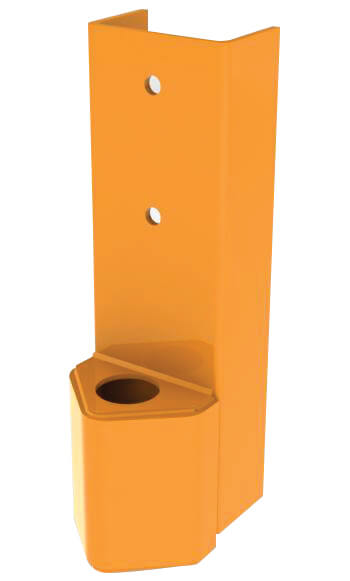

Post protectors



03-WAB-I-YLS
03-PP-IT-YLS
 03-PP-BOL-YLS
product code
description
03-WAB-I-YLS
Bull-nose 24'' x 3.25'', Safety Yellow
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-IT-YLS
'Protect-it' 5.24'' X 3.25'', Safety Yellow
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-BOL-YLS
Bollard 24'' x 4'' x 4'', Safety Yellow
---
---
---
---
---
---
---
---
---
---
---
---
---
END OF ROW PROTECTORS

End of row protectors protect frames against side collisions. They are made of 3/8’’x4’’x6’’ structural angle with reinforced bevelled ends. 5/8’’ anchors (included) are fixed to a maximum of 24’’ distance (centre to centre)

product code
description
03-PP-ERP-YLS
End of row protector, 3'' x 4'' x 3/16'' (hole 5/8''@16''), Safety Yellow
---
---
---
---
---
---
---
---
---
---
---
---
---

SINGLE COLUMN BACK STOPPER

Product code
description
03-PP-MBS096-__
Single column back stopper, welded base, inverted, 96''
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-MBS120-__
Single column back stopper, welded base, inverted, 120''
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-MBS144-__
Single column back stopper, welded base, inverted, 144''
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-MBS192-__
Single column back stopper, welded base, inverted, 192''
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-MBS216-__
Single column back stopper, welded base, inverted, 216''
---
---
---
---
---
---
---
---
---
---
---
---
---
03-PP-MBS000-GALV
Single column back stopper, Connector, Galvanized Steel
---
---
---
---
---
---
---
---
---
---
---
---
---

* Complete de product code with the desired color :

MB — Mercury Blue
OR — Orange
GR — Pale Grey

Wire mesh guard

Features

  • Fully welded corner
  • Rugged 2” x 2” x 10GA welded wire mesh
  • Offset mounting bracket
  • 94" pannels for 96" racking beams
  • 106" pannels for 108" racking beams
  • 118" pannels for 120" racking beams

Form a sturdy wall of protection between your employees and your inventory with Cogan wire mesh rack guards. Rigid and resilient, our rack guards bolt directly to pallet uprights, effectively placing a barrier between stored materials and the picking aisles below. Your workers will remain safe from falling debris should a forklift bump the racking or if a pallet breaks.

Component

Product code
Description
Top view of the racking
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Bracket
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Width: 94', 106', 118'. Height: 47', 59'
---
---
---
---
---
---
---
---
---
---
---
---
---
---
Fini: Peinture et poudre Cogan Grey
---
---
---
---
---
---
---
---
---
---
---
---
---
---

panels

product code
Dimensions
QS-W84
8' wide 4' high
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-W85
8' wide x 5' height
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-W94
9' wide 4' high
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-W95
9' wide x 5' high
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-W104
10' wide x 4' high
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-W105
10' wide x 5' high
---
---
---
---
---
---
---
---
---
---
---
---
---

brackets (sold seperately)

Product code
Dimensions
QS-CMBS06
8'' bracket (For 6'' offset)
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-CMBS08
10'' bracket (For 8'' offset)
---
---
---
---
---
---
---
---
---
---
---
---
---
QS-CMBS12
14'' bracket (For 12'' offset)
---
---
---
---
---
---
---
---
---
---
---
---
---
